Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SAKE
  • Model Number: 6SP
  • Theory: Centrifugal Pump
  • Structure: Multistage Pump
  • Usage: Water
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: electricity
  • Pressure: High Pressure
  • Application: Submersible
  • Product name: High flow PUMPS 6SP 7.5kW three-phase deep-well submersible pump
  • Model: 6SP
  • Warranty: 1 Year
  • Material: Stainless Steel
  • Head: 0-137m
  • Size: 6 Inch
  • Motor: 100% Copper Wire
  • Item: Water Irrigation Pump
  • Feature: Long Life
  • Name: Agriculture Irrigation Tools

Packaging & Delivery

Packaging Details Standard Carton Packaging,Plywood packaging, Cylinder packaging.High flow PUMPS 6SP 7.5kW 17m3/h three-phase deep-well submersible pump
Delivery Time Shipped in 30 days after payment
Product Description

High flow PUMPS 6SP 7.5kW 17m3/h three-phase deep-well submersible pump

—Typical applications :
The biggest characteristic of deep well pump motor and pump into an organic whole, it is immersed in the underground Wells to a kind of pump and water pump.
1.Water supply system

2.Booster

3.Irrigation
4.Home Supply
5.Garden Fountains and Farm Irrigation
6.Lowering underground water level

7.Various industrial applications

8.Large Scale Watering System for Commercial etc.


—Working conditions:
Dilute and clean non-corrosive liquid which dose not contain solid grains or fibers.
The pump should be running under the performance range of the thick curves to
prevent the motor from overheating due to lower capacity or overloading due to
higher capacity .

—Pump / Motor

Well Dia: 150mm (6")

Speed: 2850rpm

Qmax : 65 (m³/h )
Adopted the NEMA standard
Insulation class : IP 68
Maximum diameter : Φ144mm
Highest temperature of liquid : 35 °c

The main point to be understood is that ALL MECHANICAL SEALS MUST LEAK to operate properly.MECHANICAL SEALS ARE CONTROLLED LEAKAGE DEVICES, NOT ZERO LEAKAGE DEVICES.

PERFORMANCE TABLE

  Type

Three    Phase
Motor Power

Capacity and head
  1/min          0                400               500          767

Dimensions
Length    Weight

380-415V~50 HZ
KW
HP
m3/h
0
24
30
46
mm
kgs
6SP46/03-5.5KW
5.5
7.5



Head
(m)
38
34
32
25
1317
47
6SP46/05-7.5KW
7.5
10
64
56
53
41
1486
54
6SP46/06-9.2KW
9.2
12.5
76
67
64
49
1636
62
6SP 46/07- 11KW
11
15
89
79
74
58
1751
68
6SP46/08-13KW
13
17.5
102
90
85
66
1906
73
6SP46/10-15KW
15
20
127
112
106
82
2111
82

MAIN FEATURES

1) Max head ranges from 38 m to 102 m . Max flow rate ranges from 46 m3/h to 65 m3/h with different size to be used in 6” boreholes.

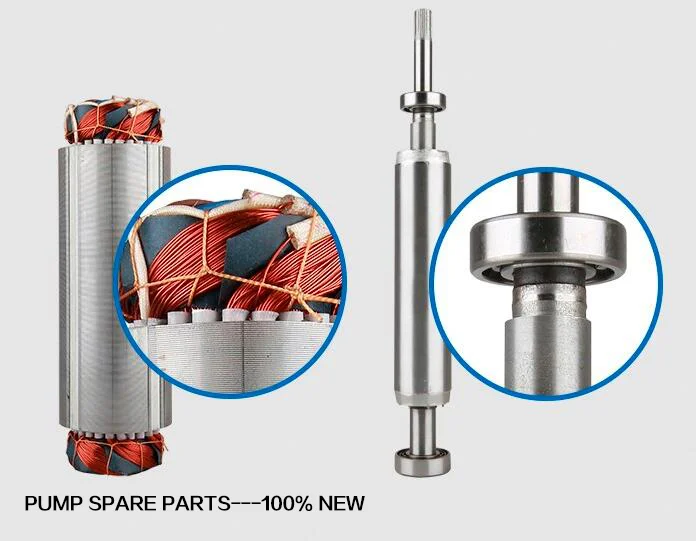

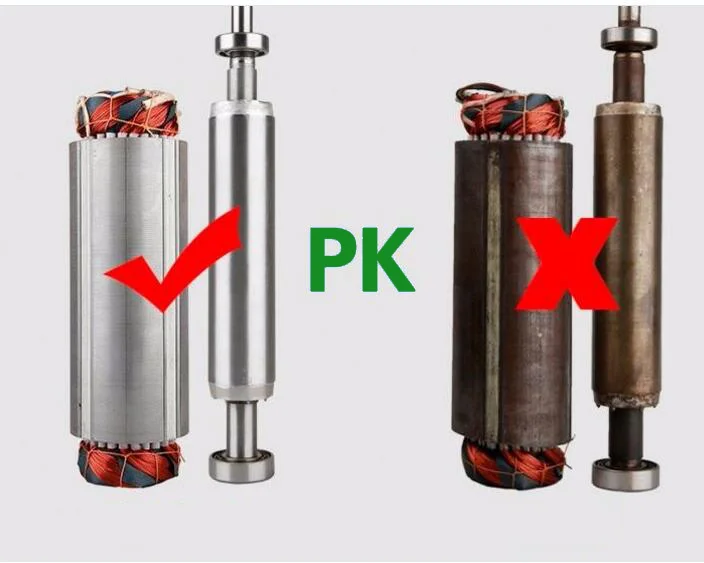

2) 100% copper wire/ 304 stainless steel shaft


3) Advanced and smart controller


4) 100% testing system for motor/complete set pump/controller, each pump will be tested good before delivery.


5)Installation is simple and convenient, free maintenance


6)Overload protector.When the temperature of the motor is too high, more than the temperature of the Overload protector to protect the water pump will automatically jump out, prevent burning machine.

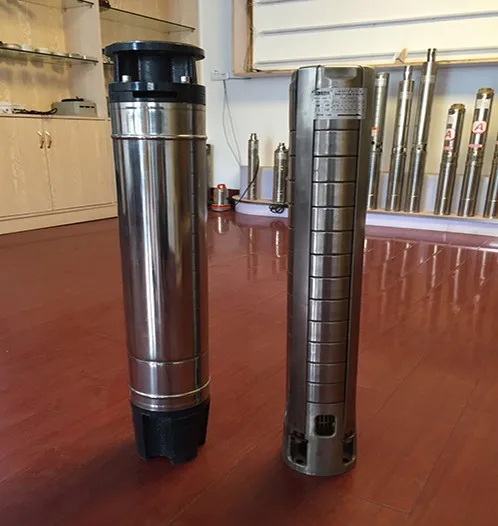

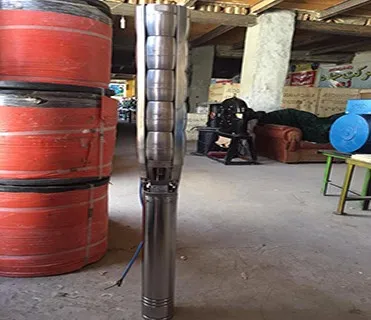

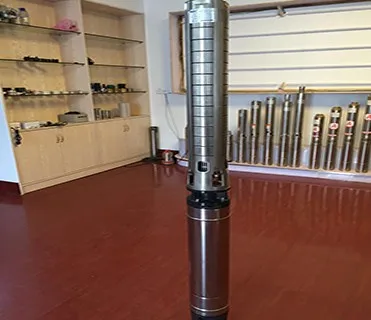

Detailed Images

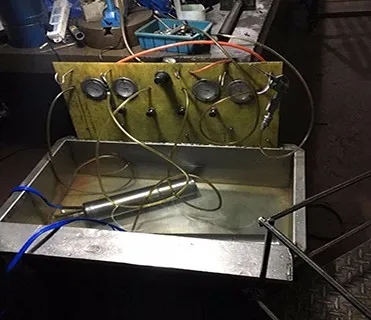

Pump Checking

EACH PUMP WILL BE TESTED GOOD BEFORE PUMP DELIVERY.

1. RIDA assure each pump quality, customer won't get broken pumps .
2. What makes a family happy?
Safety, yes, and warmth. Safety, is the most attractive form of happy, the one that comes from product supplier, this is what makes customer remember RIDA PUMP.

RIDA PUMP -- bring happiness to our business partners.

Company profile

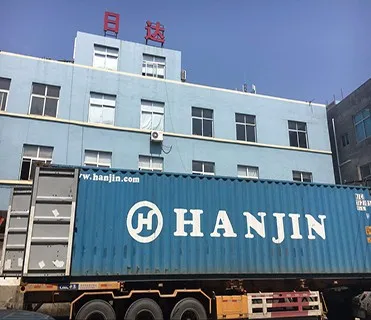

Taizhou Rida Pump CO.LTD is a modern professional multistage deep-well submersible pumps production enterprise which in design, manufacture and sale of the above mentioned products.Our company is located in Yingqian industrial area, Daxi town, Wenling city ,one of the pump production base in Zhejiang, China.
RIDA PUMP can supply a wide range of multistage deep -well submersible pump, with all products expertly designed and crafted to meet our clients' expectation.

Packing & Delivery

Packaging Details: Standard Carton packaging,Plywood packaging ,Cylinder packaging.
Delivery Detail: 15-30 working days after we receive the bank receipt.

More Products

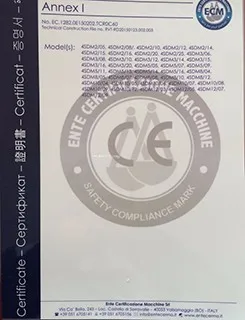

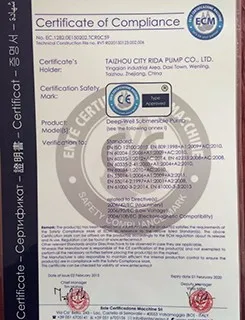

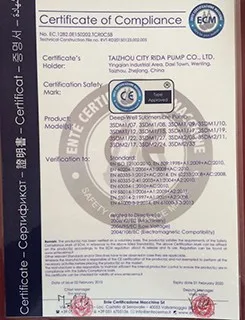

Certifications
FAQ

High flow PUMPS 6SP 7.5kW 17m3/h three-phase deep-well submersible pump

1.Q: What about our pump warranty?
A: 1-2 years pump warranty, if the pump is broken, we could send you new pump parts.
2.Q: What is our minimum order quantity ( M O Q)?
A:30 pcs Pumps
3.Q: What is our payment terms?
A: By Paypal;By Western Union; By RMB ; By T/T (30% In advance as deposit, 70% before the pump delivery)
4.Q: Is it all right to make customer's own brand ?
A: It's ok to use our customer own Brand, all is according to our customers idea.
5.Q: What about export details?
A: We could arrange all the pump export things for our customers, about declare the customs , ship the pump to the port and offer related pump Certifications etc.
