Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: SAKE
  • Model Number: 6SR30
  • Theory: Submersible Pump, Submersible Pump
  • Structure: Multistage Pump, Multistage pump
  • Usage: Water, Water
  • Power: Electric, Electric
  • Standard or Nonstandard: Standard
  • Fuel: Electric
  • Pressure: Low Pressure, Low pressure
  • Application: Submersible
  • Brand: SAKE
  • Place of origin: Zhe Jiang, China
  • Motor: Filled with food grade oil
  • Body: AISI 304 SS
  • Material: Stainless steel or cast iron

Packaging & Delivery

Packaging Details Standard carton packing
High Quality Standard 6SR deep well submersible pump water pump
Delivery Time 12 working days High Quality Standard 6SR deep well submersible



              Welcome to Rida Pump



High Quality Standard 6SR deep well submersible pump water pump



1.Pump Description

Application:
Carrying the water from well, and supply water for agriculture, household, civil,industrial use.

For water supply from wells or reservoirs .
For domestic use, for civil and iudustrial applications .
For garden use irrigation ,

Operating conditions
Maximum fluid temperature up to +35 ℃ .
Maximum sand content : 0.3% .
Maximum immersion : 100m .
Minimum well diameter : 6'' .

Motor
Rewindable motor
Full obturated screen motor
Three - phase : 380V - 415V/50Hz
Equip with special start - up control box .

Inter diameter of outlet  3''  4''

Special features available
Other voltages .
Frequency 60Hz .
Other mechanical seal .
Equip with Auto - control box .

Warranty : 2 years
( according our general sales conditions ) .

High Quality Standard 6SR deep well submersible pump water pump

 Material :
ComponentsMaterial
Pump external  casingAISI 304 ss
Delivery  casingCast iron G20 UNI5007
Suction   IanterCast iron G20 UNI5007
DiffuserPlastic . PC/AISI 304 ss
Impeller1.Plastic. PC  2.Plastic . PPO
ShaftAISI  316 ss
Shaft  coupling1.AISI 304 ss  2.AISI 316 ss
Wear ringAISI  304 ss
Motor esternal casingAISI  304 ss
Top caver Cast iron G20 UNI5007
Bottom supportCast iron G20 UNI5007
Mechanical sealSpecial seal for deep well (carbon - SIC/TC )
ShaftAISI  316 ss - C1045
Bearing1.NSK (Japan )  2.ASIS  304 ss/graphite
Sel lubricant oilOil for food machinery and pharmaceuuic ues


PERFORMANCE TABLE :
MOODELP2
3~380V/415V KW HP m³/h061218243036
1/min0100200300400500600
6SR30/55.57.5  71676154453420
6SR30/77.510  100948675634828
6SR30/99.212.5  12812111197816136
6SR30/111115  156147135118997544

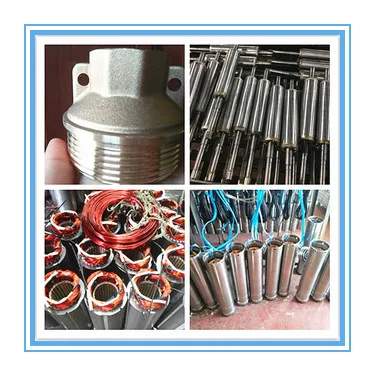

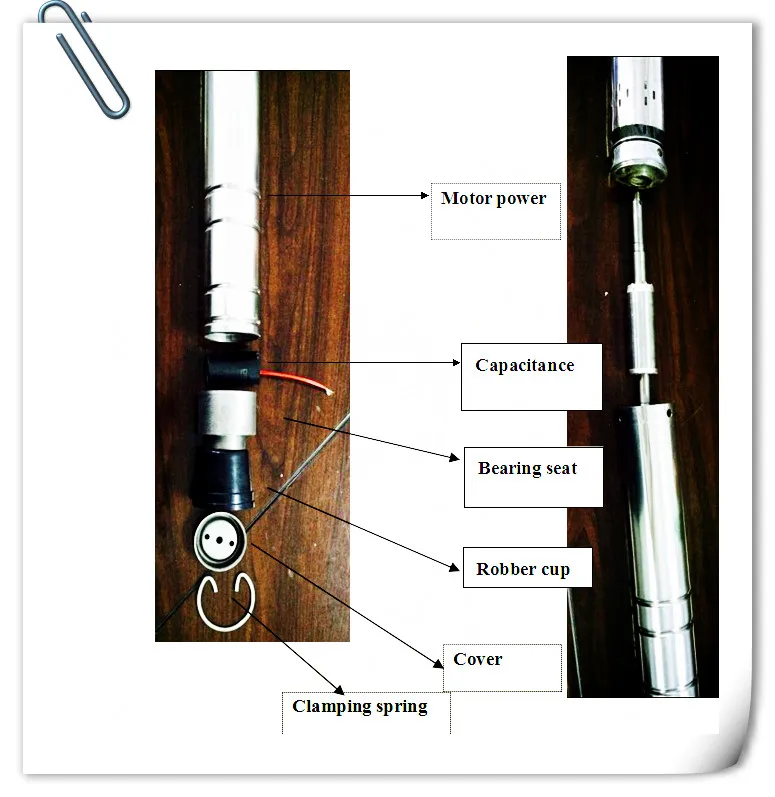

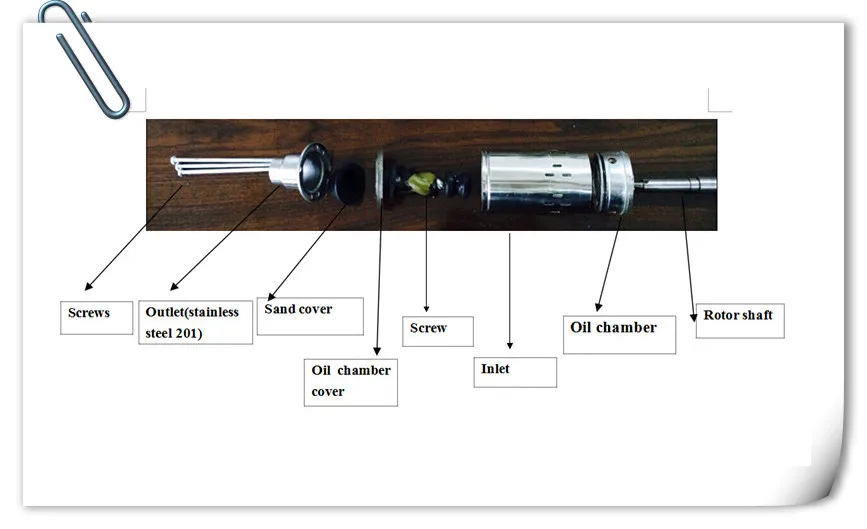

2 . Pump Parts

High Quality Standard 6SR deep well submersible pump water pump





3 . More Products To Choose

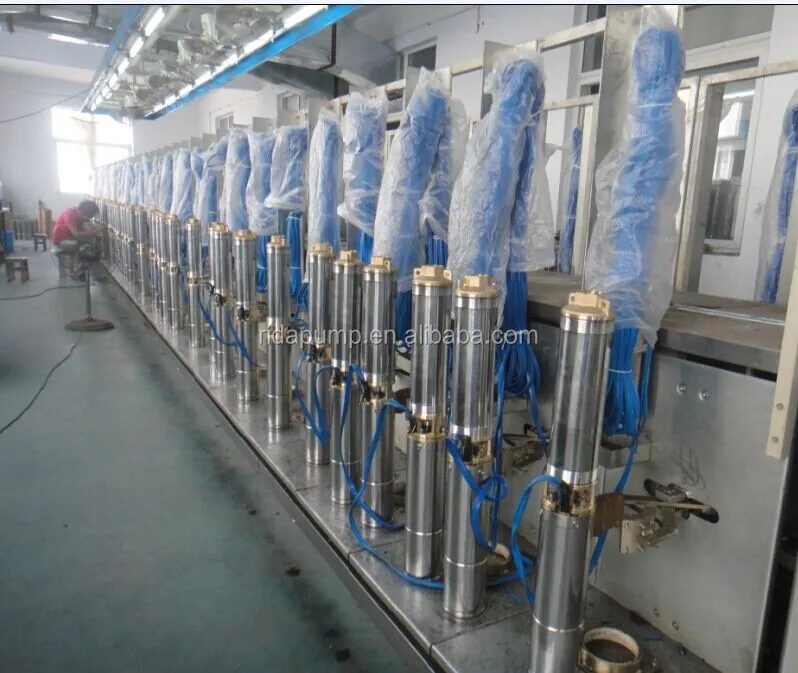

4 . Factory Profile

Taizhou City Rida Pump Co.,Ltd is a modern professional multistage deep well submersible pumps production enterprise which in design , manufacture sale of the above mentioned products . Our company is located Yingqian industrial area , Daxi Town , Wenling City , one of pump production base in Zhejiang , China . It's 23kms from Ningbo port , and it takes only 2 hours to go to Ningbo International Airport .

Since the Huangzhou Bay Grand Bridge has completed it only 350kms from here to Shanghai , the biggest city in China . We can supply a wide range of multistage deep well submersible pump , with all product expertly designed and crafted to meet our client's expectation .

High Quality Standard 6SR deep well submersible pump water pump


5 . Certificate




6 . Packaging & Delivery


Packaging details: Standard Carton packing,  Plywood packaging, Cylinder packaging.

Delivery details: 15 days later after we receive the bank receipt.





7. Export Country









8 . FAQ





 1.Q: What is your MOQ of this item?

    A: 10 PCS



 2.Q: When will the order be delivered?

  A:15-20 after we receiving  your order.



 3.Q:Where is your loading port?

   A: Ningbo port, shanghai port , China



 4.Q: Is it all right to make customer's own brand name?

  A: It's Ok.



 5. What is your payment term?

  A: 30% in advance, 70% balance the B/L or T/T , Paypal , MoneyGram



  6.Q: Why choose us?



     A  :   1: We could offer you a lower price due to our advanced technology all pump parts are made by ourselves,  we could help you save more cost.



                2. We have not only produce deep well pumps, also we can offer submersible pumps, garden pumps, etc.



              3. We have a professional design team who deal with color box/ Instruction manual/ prodcut design accroding to customer's requirement.



             4.We have competitive price and have best delivery time, most spare parts are produced by our factory, and we have the old experience workes.



             5.We have best after-sale service, and we are very confident in our products to offer customers 1 year warranty.



             6. The customers are guaranteed by our 100% satisfaction on all products.




       High Quality Standard 6SR deep well submersible pump water pump
